DC665-F android motherboard

Overview

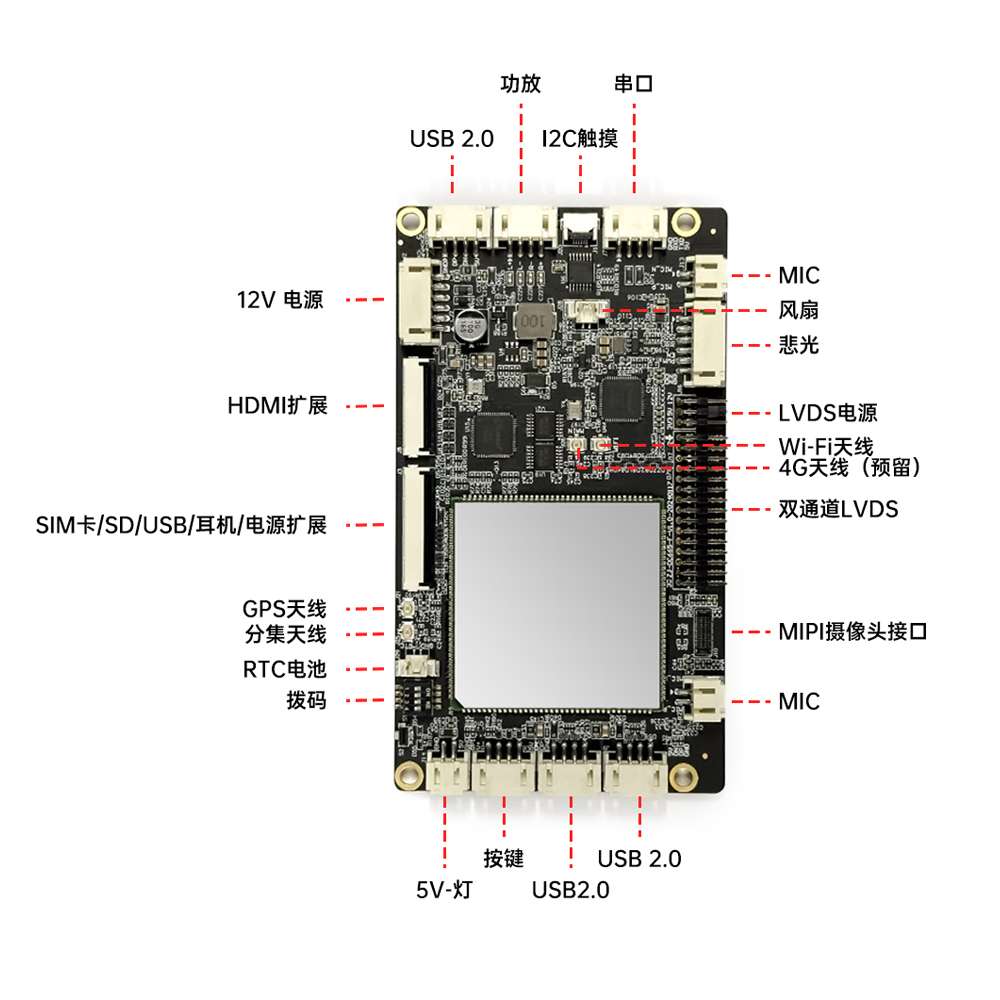

The Fanconn DC665-F series Android motherboard is powered by the Qualcomm Snapdragon QCM6125 processor, built on an 11nm process. This CPU features a 64-bit ARM architecture with an 8-core Kryo design (4*A73 at 2.0GHz & 4*A53 at 1.8GHz), supporting 4K encoding and decoding for smooth playback of 4K ultra-high-definition videos. It runs on the Android 13 operating system and offers memory options of 4GB+64GB or 8GB+128GB.

The motherboard supports LTE 4G expansion, with multi-country and multi-region band compatibility, including TD-LTE, FDD-LTE, WCDMA, EVDO, TD-SCDMA, CDMA, and GSM. It integrates GNSS (Global Navigation Satellite System) and dual-band 2.4GHz & 5GHz Wi-Fi. With a wide range of interfaces, it meets the needs of most peripheral devices. Additionally, the uniquely designed IO interface expansion board can be customized according to requirements.

The DC series Android motherboards currently include models such as DC665-F, DC685-F, DC665, DC686, DC690, and DC690V.

These motherboards are widely applicable in various products, including human-machine interaction devices, digital signage, live streaming and screen mirroring, smart companion devices, photo and video surveillance, security monitoring, vehicle-mounted equipment, and intelligent information collection devices.

Specifications
